nexion NX6440

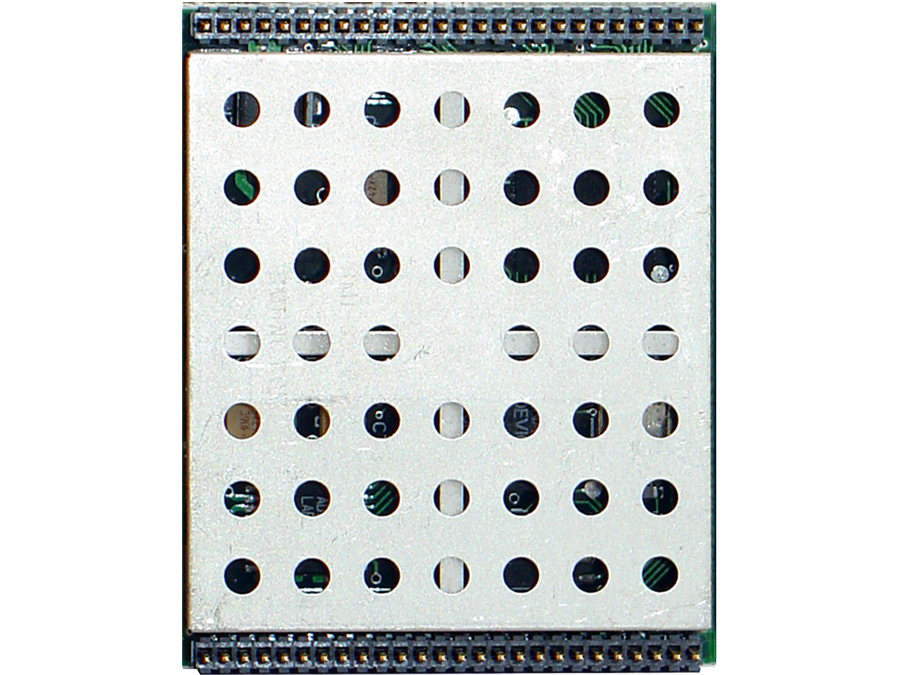

The Nexion NX2500 series module is a specially designed miniature OEM (Original Equipment Manufacturer) modem suitable for embedded applications.

More Information

Following on from the success of the NX1500 series platform, the NX2500 series module offers a high speed, cost effective, highly integrated data solution optimised for use over standard VHF/UHF transceivers.


  • Low voltage
  • Data rate 4000-8000 bps operation as standard
  • Small 40 x 50 x 12mm
  • 5V operation (3.3V Logic Interface)
  • Multiple communications ports
  • Multiple digital I/O
  • Standard 2.7KHz audio bandwidth
  • Field programmable
  • Wide temperature range

Download NX2500 Brochure

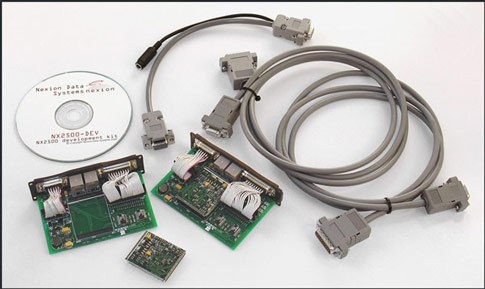

  NX2500-DEV Kit A development Kit is available.
